Relationships
The Lucid data models have out of box support for working with relationships. You have to define the relationships on your models, and Lucid will do all the heavy lifting of constructing the underlying SQL queries.
HasOne
HasOne creates a one-to-one
relationship between two models. For example, A user has a profile. The has one relationship needs a foreign key in the related table.
Following is an example table structure for the has one relationship. The profiles.user_id
is the foreign key and forms the relationship with the users.id
column.
Following are the example migrations for the users
and the profiles
tables.
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Users extends BaseSchema {
protected tableName = 'users'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Profiles extends BaseSchema {
protected tableName = 'profiles'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id')
table.integer('user_id').unsigned().references('users.id').onDelete('CASCADE') // delete profile when user is deleted
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
Defining relationship on the model
Once you have created the tables with the required columns, you will also have to define the relationship on the Lucid model.
The has one relationship is defined using the @hasOne decorator on a model property.
import Profile from '#models/profile'
import type { HasOne } from '@adonisjs/lucid/types/relations'
import { column, BaseModel, hasOne } from '@adonisjs/lucid/orm'
export default class User extends BaseModel {
@hasOne(() => Profile)
declare profile: HasOne<typeof Profile>
}
Custom relationship keys
By default, the foreignKey
is the snake_case representation of the parent model name and its primary key. However, you can also define a custom foreign key.
@hasOne(() => Profile, {
foreignKey: 'profileUserId', // defaults to userId
})
declare profile: HasOne<typeof Profile>
Remember, if you intend to use camelCase for your foreign key definition, keep in mind that the default naming strategy will automatically convert it to snake_case.
The local key is always the primary key of the parent model but can also be defined explicitly.
@hasOne(() => Profile, {
localKey: 'uuid', // defaults to id
})
declare profile: HasOne<typeof Profile>
HasMany
HasMany creates a one-to-many
relationship between two models. For example, A user has many posts. The hasMany relationship needs a foreign key in the related table.
Following is an example table structure for the hasMany relationship. The posts.user_id
is the foreign key and forms the relationship with the users.id
column.
Following are the example migrations for the users
and the posts
tables.
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Users extends BaseSchema {
protected tableName = 'users'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Posts extends BaseSchema {
protected tableName = 'posts'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id')
table.integer('user_id').unsigned().references('users.id').onDelete('CASCADE') // delete post when user is deleted
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
Defining relationship on the model
Once you have created the tables with the required columns, you will also have to define the relationship on the Lucid model.
The has many relationship is defined using the @hasMany decorator on a model property.
import Post from '#models/post'
import type { HasMany } from '@adonisjs/lucid/types/relations'
import { column, BaseModel, hasMany } from '@adonisjs/lucid/orm'
export default class User extends BaseModel {
@hasMany(() => Post)
declare posts: HasMany<typeof Post>
}
Custom relationship keys
By default, the foreignKey
is the camelCase representation of the parent model name and its primary key. However, you can also define a custom foreign key.
@hasMany(() => Post, {
foreignKey: 'authorId', // defaults to userId
})
declare posts: HasMany<typeof Post>
Remember, if you intend to use camelCase for your foreign key definition, keep in mind that the default naming strategy will automatically convert it to snake_case.
The local key is always the primary key of the parent model but can also be defined explicitly.
@hasMany(() => Post, {
localKey: 'uuid', // defaults to id
})
declare posts: HasMany<typeof Post>

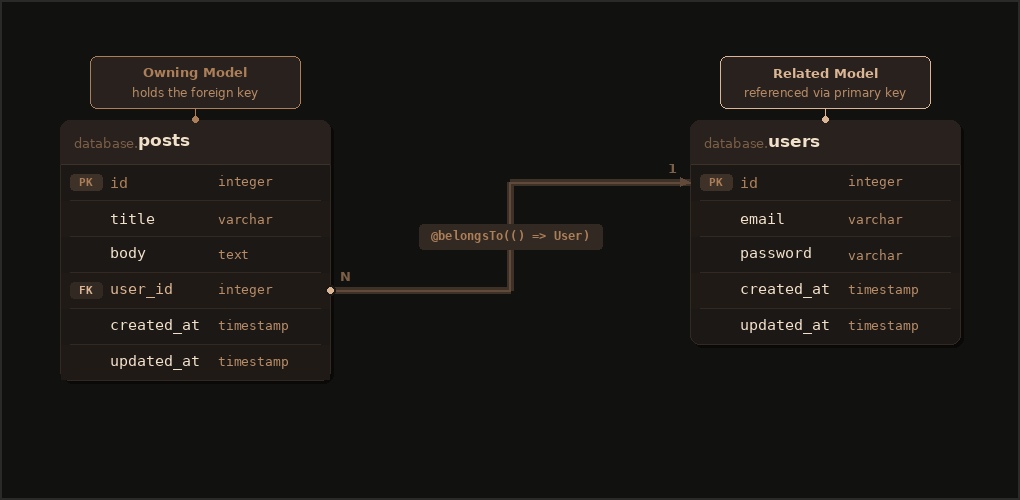

BelongsTo
BelongsTo is the inverse of the hasOne
and the hasMany
relationship. So, for example, profile belongs to a user and a post belongs to a user.
You can leverage the same table structure and the same foreign key conventions to define a belongsTo relationship.
The belongs to relationship is defined using the @belongsTo decorator on a model property.
import User from '#models/user'
import type { BelongsTo } from '@adonisjs/lucid/types/relations'
import { column, BaseModel, belongsTo } from '@adonisjs/lucid/orm'
export default class Profile extends BaseModel {
// Foreign key is still on the same model
@column()
declare userId: number
@belongsTo(() => User)
declare user: BelongsTo<typeof User>
}
ManyToMany
A many-to-many relationship is slightly complex, as it allows both sides to have more than one relationship with each other. For example: A user can have many skills, and a skill can also belong to many users.
You need a third table (usually known as a pivot table) for this relationship to work. The pivot table holds the foreign keys for both the other tables.
In the following example, the skill_user
table has the foreign keys for both the users
and the skills
table, allowing each user to have many skills and vice versa.
Following are the example migrations for the users
, skills
, and the skill_user
tables.
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Users extends BaseSchema {
protected tableName = 'users'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Skills extends BaseSchema {
protected tableName = 'skills'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class SkillUsers extends BaseSchema {
protected tableName = 'skill_user'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.integer('user_id').unsigned().references('users.id')
table.integer('skill_id').unsigned().references('skills.id')
table.unique(['user_id', 'skill_id'])
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
Defining relationship on the model
Once you have created the tables with the required columns, you will also have to define the relationship on the Lucid model.
The many to many relationship is defined using the @manyToMany decorator on a model property.
There is no need to create a model for the pivot table.
import Skill from '#models/skill'
import type { ManyToMany } from '@adonisjs/lucid/types/relations'
import { column, BaseModel, manyToMany } from '@adonisjs/lucid/orm'
export default class User extends BaseModel {
@column({ isPrimary: true })
declare id: number
@manyToMany(() => Skill)
declare skills: ManyToMany<typeof Skill>
}
Custom relationship keys
A manyToMany relation relies on many different keys to properly set up the relationship. All of these keys are computed using standard conventions. However, you are free to override them.
-
localKey
is the primary key of the parent model (i.e., User) -
relatedKey
is the primary key of the related model (i.e., Skill) -
pivotForeignKey
is the foreign key for establishing the relationship with the parent model. The default value is thesnake_case
version of the parent model name and its primary key. -
pivotRelatedForeignKey
is the foreign key for establishing the relationship with the related model. The default value is thesnake_case
version of the related model name and its primary key.
@manyToMany(() => Skill, {
localKey: 'id',
pivotForeignKey: 'user_id',
relatedKey: 'id',
pivotRelatedForeignKey: 'skill_id',
})
declare skills: ManyToMany<typeof Skill>
Remember, if you intend to use camelCase for your foreign key definition, keep in mind that the default naming strategy will automatically convert it to snake_case.
Custom pivot table
The default value for the pivot table name is computed by sorting, then combining the parent model name and the related model name. However, you can also define a custom pivot table.
@manyToMany(() => Skill, {
pivotTable: 'user_skills',
})
declare skills: ManyToMany<typeof Skill>
Additional pivot columns
At times your pivot table will have additional columns. For example, you are storing the proficiency
alongside the user skill.
You will have to inform a manyToMany relationship about this extra column. Otherwise, Lucid will not select it during the fetch queries.
@manyToMany(() => Skill, {
pivotColumns: ['proficiency'],
})
declare skills: ManyToMany<typeof Skill>
Pivot table timestamps
You can enable the support for created at and updated at timestamps for your pivot tables using the pivotTimestamps
property.
- Once defined, Lucid will automatically set/update these timestamps on insert and update queries.
- Converts them to an instance of Luxon Datetime class during fetch.
@manyToMany(() => Skill, {
pivotTimestamps: true
})
declare skills: ManyToMany<typeof Skill>
Settings pivotTimestamps = true
assumes the column names are defined as created_at
and updated_at
. However, you can define custom column names as well.
@manyToMany(() => Skill, {
pivotTimestamps: {
createdAt: 'creation_date',
updatedAt: 'updation_date'
}
})
declare skills: ManyToMany<typeof Skill>
To disable a particular timestamp, you can set its value to false
.
@manyToMany(() => Skill, {
pivotTimestamps: {
createdAt: 'creation_date',
updatedAt: false // turn off update at timestamp field
}
})
skills: ManyToMany<typeof Skill>
HasManyThrough
The HasManyThrough relationship is similar to the HasMany
relationship but creates the relationship through an intermediate model. For example, A country has many posts through users.
- This relationship needs the through model (i.e., User) to have a foreign key reference with the current model (i.e., Country). The related model (i.e., Post) has a foreign key reference with the through model (i.e., User).
Following are the example migrations for the countries
, users
, and the posts
tables.
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Countries extends BaseSchema {
protected tableName = 'countries'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Users extends BaseSchema {
protected tableName = 'users'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.integer('country_id').unsigned().references('countries.id')
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
import { BaseSchema } from '@adonisjs/lucid/schema'
export default class Posts extends BaseSchema {
protected tableName = 'posts'
async up() {
this.schema.createTable(this.tableName, (table) => {
table.increments('id').primary()
table.integer('user_id').unsigned().references('users.id')
table.timestamp('created_at', { useTz: true })
table.timestamp('updated_at', { useTz: true })
})
}
}
Defining relationship on the model
Once you have created the tables with the required columns, you will also have to define the relationship on the Lucid model.
The has many through relationship is defined using the @hasManyThrough decorator on a model property.
import Post from '#models/post'
import User from '#models/user'
import type { HasManyThrough } from '@adonisjs/lucid/types/relations'
import { column, BaseModel, hasManyThrough } from '@adonisjs/lucid/orm'
export default class Country extends BaseModel {
@column({ isPrimary: true })
declare id: number
@hasManyThrough([() => Post, () => User])
declare posts: HasManyThrough<typeof Post>
}
Preload relationship
Preloading allows you to fetch the relationship data alongside the main query. For example: Select all the users and preload
their profiles at the same time.
- The
preload
method accepts the name of the relationship defined on the model. - The relationship property value for the
hasOne
and thebelongsTo
relationship is either set to the related model instance ornull
when no records are found. The relationship property value is an array of the related model instance for all other relationship types.
const users = await User.query().preload('profile')
users.forEach((user) => {
console.log(user.profile)
})
You can modify the relationship query by passing an optional callback to the preload
method.
const users = await User.query().preload('profile', (profileQuery) => {
profileQuery.where('isActive', true)
})
Preload multiple relationships
You can preload
multiple relationships together by calling the preload
method for multiple times. For example:
const users = await User.query().preload('profile').preload('posts')
Preload nested relationships
You can preload nested relationships using the relationship query builder accessible via the optional callback.
In the following example, we fetch all the users, preload their posts, and then fetch all the comments for each post, along with the comment user.
const users = await User.query().preload('posts', (postsQuery) => {
postsQuery.preload('comments', (commentsQuery) => {
commentsQuery.preload('user')
})
})
Many to many pivot columns
When preloading a manyToMany relationship, the pivot table columns are moved to the $extras
object on the relationship instance.
By default, we only select the foreign keys from the pivot table. However, you can define additional pivot columns to select at defining the relationship or runtime.
const users = await User.query().preload('skills', (query) => {
query.pivotColumns(['proficiency'])
})
users.forEach((user) => {
user.skills.forEach((skill) => {
console.log(skill.$extras.pivot_proficiency)
console.log(skill.$extras.pivot_user_id)
console.log(skill.$extras.pivot_skill_id)
console.log(skill.$extras.pivot_created_at)
})
})
Lazy load relationships
Along with preloading, you can also load relationships directly from a model instance.
const user = await User.find(1)
// Lazy load the profile
await user.load('profile')
console.log(user.profile) // Profile | null
// Lazy load the posts
await user.load('posts')
console.log(user.posts) // Post[]
Like the preload
method, the load
method also accepts an optional callback to modify the relationship query.
await user.load('profile', (profileQuery) => {
profileQuery.where('isActive', true)
})
You can load multiple relationships by calling the load
method multiple times or grabbing an instance of the underlying relationship loader.
// Calling "load" method multiple times
await user.load('profile')
await user.load('posts')
// Using the relationships loader
await user.load((loader) => {
loader.load('profile').load('posts')
})
Limit preloaded relationships
Let's say you want to load all the posts and fetch the recent three comments for each post.
Using the query builder limit
method will not give you the desired output since the limit is applied to the entire data set and not on the comments of an individual post.
Therefore, you must use the groupLimit
method that uses SQL window functions to apply a limit on each parent record separately.
const posts = await Post.query().preload('comments', (query) => {
query.groupLimit(3)
})
Relationship query builder
You can also access the query builder for a relationship using the related
method. The relationship queries are always scoped to a given parent model instance.
Lucid will automatically add the where
clause for limiting the posts to the given user in the following example.
const user = await User.find(1)
const posts = await user.related('posts').query()
The query
method returns a standard query builder instance, and you can chain any methods to it to add additional constraints.
const posts = await user.related('posts').query().where('isPublished', true).paginate(1)
You can also use the relationship query builder to update
and delete
related rows. However, doing so will not execute any of the model hooks.
Filter by relationships
You can also filter the records of the main query by checking for the existence or absence of a relationship. For example, select all posts that have received one or more comments.
You can filter by relationship using the has
or the whereHas
methods. They accept the relationship name as the first argument. Optionally you can also pass an operator and number of expected rows.
// Get posts with one or more comments
const posts = await Post.query().has('comments')
// Get posts with more than 2 comments
const posts = await Post.query().has('comments', '>', 2)
You can make use of the whereHas
method to add additional constraints for the relationship query. In the following example, we only fetch posts that have one or more approved comments.
const posts = await Post.query().whereHas('comments', (query) => {
query.where('isApproved', true)
})
Similar to the has
method, the whereHas
also accepts an optional operator and the count of expected rows.
const posts = await Post.query().whereHas(
'comments',
(query) => {
query.where('isApproved', true)
},
'>',
2
)
Following is the list of has
and whereHas
variations.
orHas | orWhereHas
adds an OR clause for the relationship existence.doesntHave | whereDoesntHave
checks for the absence of the relationship.orDoesntHave | orWhereDoesntHave
adds an OR clause for the relationship absence.
Relationship aggregates
The relationships API of Lucid also allows you to load the aggregates for relationships. For example, You can fetch a list of posts with a count of comments for each post.
withAggregate
The withAggregate
method accepts the relationship as the first argument and a mandatory callback to define the value's aggregate function and property name.
In the following example, the comments_count
property is moved to the $extras
object because it is not defined as a property on the model.
const posts = await Post.query().withAggregate('comments', (query) => {
query.count('*').as('comments_count')
})
posts.forEach((post) => {
console.log(post.$extras.comments_count)
})
withCount
Since counting relationship rows is a very common requirement, you can instead use the withCount
method.
const posts = await Post.query().withCount('comments')
posts.forEach((post) => {
console.log(post.$extras.comments_count)
})
You can also provide a custom name for the count property using the as
method.
const posts = await Post.query()
.withCount('comments', (query) => {
query.as('commentsCount')
})
posts.forEach((post) => {
console.log(post.$extras.commentsCount)
})
You can define constraints to the count query by passing an optional callback to the withCount
method.
const posts = await Post.query().withCount('comments', (query) => {
query.where('isApproved', true)
})
Lazy load relationship aggregates
Similar to the withCount
and the withAggregate
methods, you can also lazy load the aggregates from a model instance using loadCount
and the loadAggregate
methods.
const post = await Post.findOrFail()
await post.loadCount('comments')
console.log(post.$extras.comments_count)
const post = await Post.findOrFail()
await post.loadAggregate('comments', (query) => {
query.count('*').as('commentsCount')
})
console.log(post.$extras.commentsCount)
Make sure you are using the loadCount
method only when working with a single model instance. If there are multiple model instances, it is better to use the query builder withCount
method.
Relationship query hook
You can define an onQuery
relationship hook at the time of defining a relationship. Then, the query hooks get executed for all the select, update, and delete queries executed by the relationship query builder.
The onQuery
method is usually helpful when you always apply certain constraints to the relationship query.
import UserEmail from '#models/user_email'
import type { HasMany } from '@adonisjs/lucid/types/model'
import { column, BaseModel, hasMany } from '@adonisjs/lucid/orm'
export default class User extends BaseModel {
@hasMany(() => UserEmail)
declare emails: HasMany<typeof UserEmail>
@hasMany(() => UserEmail, {
onQuery: (query) => {
query.where('isActive', true)
},
})
declare activeEmails: HasMany<typeof UserEmail>
}
Create relationships
You can create relationships between two models using the relationships persistence API.
create
In the following example, we create a new comment and link it to the post at the same time. The create
method accepts a plain JavaScript object to persist. The foreign key value is defined automatically.
const post = await Post.findOrFail(1)
const comment = await post.related('comments').create({
body: 'This is a great post',
})
console.log(comment.postId === post.id) // true
save
Following is an example using the save
method. The save
method needs an instance of the related model. The foreign key value is defined automatically.
const post = await Post.findOrFail(1)
const comment = new Comment()
comment.body = 'This is a great post'
await post.related('comments').save(comment)
console.log(comment.postId === post.id) // true
createMany
You can also create multiple relationships using the createMany
method. The method is only available for hasMany
and manyToMany
relationships.
The createMany
method returns an array of persisted model instances.
const comments = await Post.related('comments').createMany([
{
body: 'This is a great post.',
},
{
body: 'Well written.',
},
])
saveMany
Similar to the save
method. The saveMany
method allows persisting multiple relationships together.
const comment1 = new Comment()
comment1.body = 'This is a great post'
const comment2 = new Comment()
comment2.body = 'Well written'
await Post.related('comments').saveMany([comment1, comment2])
associate
The associate
method is exclusive to the belongsTo
relationship. It let you associate two models with each other.
const user = await User.findOrFail(1)
const profile = new Profile()
profile.avatarUrl = 'foo.jpg'
await profile.related('user').associate(user)
dissociate
The dissociate
removes the relationship by setting the foreign key to null
. Thus, the method is exclusive to the belongsTo
relationship.
await profile = await Profile.findOrFail(1)
await profile.related('user').dissociate()
attach
The attach
method is exclusive to a manyToMany
relationship. It allows you to create a relationship between two persisted models inside the pivot table.
The attach
method just needs the id
of the related model to form the relationship inside the pivot table.
const user = await User.find(1)
const skill = await Skill.find(1)
// Performs insert query inside the pivot table
await user.related('skills').attach([skill.id])
You can define additional pivot columns by passing an object of key-value pair. The key is the related model id, and the value is an object of additional columns.
await user.related('skills').attach({
[skill.id]: {
proficiency: 'Beginner',
},
})
detach
The detach
method is the opposite of the attach
method and allows you to remove the relationship from the pivot table.
It optionally accepts an array of ids
to remove. Calling the method without any arguments will remove all the relationships from the pivot table.
const user = await User.find(1)
const skill = await Skill.find(1)
await user.related('skills').detach([skill.id])
// Remove all skills for the user
await user.related('skills').detach()
sync
The sync
method allows you to sync the pivot rows. The payload provided to the sync
method is considered the source of truth, and we compute a diff internally to execute the following SQL queries.
- Insert the rows missing in the pivot table but present in the sync payload.
- Update the rows present in the pivot table and the sync payload but has one or more changed arguments.
- Remove the rows present in the pivot table but missing in the sync payload.
- Ignore rows present in both the pivot table and the sync payload.
const user = await User.find(1)
// Only skills with id 1, 2, 3 will stay in the pivot table
await user.related('skills').sync([1, 2, 3])
You can also define additional pivot columns as an object of key-value pair.
const user = await User.find(1)
await user.related('skills').sync({
[1]: {
proficiency: 'Beginner',
},
[2]: {
proficiency: 'Master',
},
[3]: {
proficiency: 'Master',
},
})
You can disable the detach
option to sync rows without removing any rows from the pivot table.
await user
.related('skills')
// Add skills with id 1,2,3, but do not remove any
// rows from the pivot table
.sync([1, 2, 3], false)
Delete relationship
For the most part, you can delete related rows directly from its model. For example: You can delete a comment by its id, directly using the Comment model, there is no need to trigger the comment deletion via post.
- For a
manyToMany
relationship, you can use thedetach
method to remove the row from the pivot table. - Use the
dissociate
method to remove a belongsTo relationship without deleting the row from the database table.
Using the onDelete action
You can also use the database onDelete
action to remove the related data from the database. For example: Delete the posts of a user when the user itself is deleted.
Following is an example migration for setting the onDelete
action.
this.schema.createTable(this.tableName, (table) => {
table.increments('id')
table
.integer('user_id')
.unsigned()
.references('users.id')
.onDelete('CASCADE')
})
